Liquid Filling Machine Bottle Filling Machine With 2 4 6 8 10 Heads– Product Introduction
The Automatic Oil Bottle Liquid Filling Machine is a high-efficiency filling solution specifically designed for the edible oil industry. Ideal for various types of cooking oils such as sunflower oil, olive oil, soybean oil, palm oil, and sesame oil, this machine ensures accurate, clean, and fast filling into bottles of different shapes and sizes.
2.Olive Oil Edible Oil Spraying Bottle Filling Machine :
-
High-Precision Filling: Equipped with advanced flow meter or piston filling technology, the machine delivers consistent filling volume with minimal deviation.
-
Food-Grade Construction: All contact parts are made of stainless steel (SUS304 or SUS316) and food-grade materials, ensuring hygiene and corrosion resistance.
-
Fully Automatic Operation: Integrated with bottle indexing, automatic filling, capping, and sealing systems for continuous, high-speed production.
-
Anti-Drip & Leak-Free Design: Special anti-drip nozzles prevent oil spillage, keeping bottles and work environment clean.
-
Easy Adjustment: User-friendly PLC and touchscreen interface allow quick changes in filling volume and speed for different oil types or bottle sizes.
-
No-Fill No-Cap System: Sensors detect missing bottles to avoid filler waste, and capping only occurs when bottles are correctly positioned.
Automatic Oil Liquid Filling Machine Parameters :
| material | 304 stainless steel |
| Pump Type | Piston PUMP |
| Filling Range | 30-1000ml |
| Filling Accuracy | +/- 1% |
| Nozzle Quantity | 8pcs |
| Nozzle Diameter | 16mm |
| capacity | 60bottles/min |
| power supply | AC380V;50Hz; 3Phases |
| Air source | 0.5-0.8Mpa |
| Conveyor Height | 900±50mm |

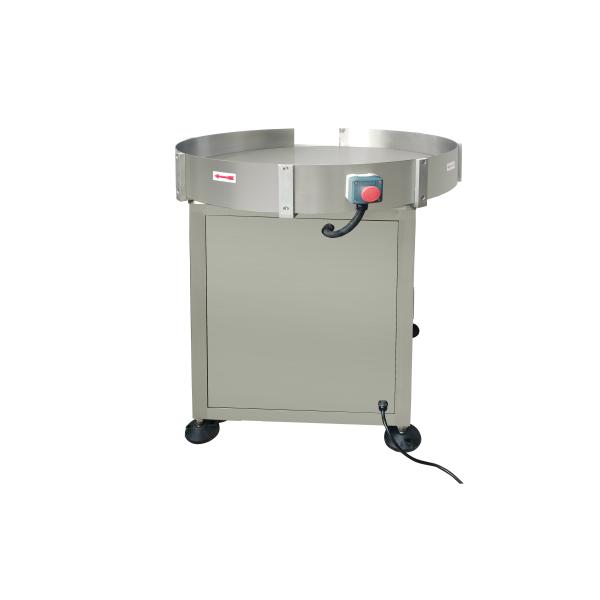

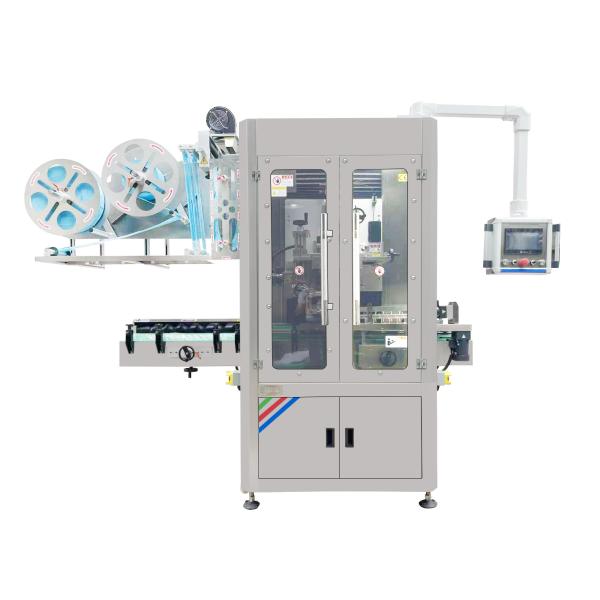

We provide the whole line : Multiple Nozzles Liquid Filling Machine + capping machine +labeling machine +turntable +shrink wrapping machine
welcome to send us inquiry about Multiple Nozzles Liquid Filling Machine.
kunshan howfond machinery co.,ltd
Add:Wenzhou road NO.9#, Building 1, TaiCang city(Post 215415), Suzhou, JiangSu Province, China.
Skype: alicehongjin
Tel: +86-0512-89571370
Mobile/WeChat :+86-15692118327
https://www.howfondpack.com
|
|
Liquid Filling Machine Bottle Filling Machine With 2 4 6 8 10 Heads Images
|
